Fimco 20 Gallon Economy Quick Release ATV Sprayer

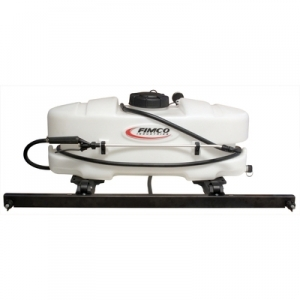

The FIMCO 20 Gallon ATV Sprayer is our basic 2 Nozzle spraying boom offering the versatility and efficiency needed to spray tight spaces or larger areas. The UV resistant, molded polymer tank has a 5 inch tethered lid for easy access and is completely drainable. Convert from a Spot to ATV sprayer with the quick release mounting bracket, allowing for simple installation or removal of the spray boom. This model features the High Flo High Performance 2.4 GPM Pump. The Lever Handgun distributes 30 up to feet of horizontal spray, 16 feet of vertical spray and comes with 15 feet of 3/8 inch hose.  The 2 Nozzle boom offers 7 feet of total spray coverage and our FIMCO exclusive manifold places pressure control and boom operation at your fingertips to conveniently fine tune your spray pattern. This sprayer is ideal for small pastures and rural properties.

Features

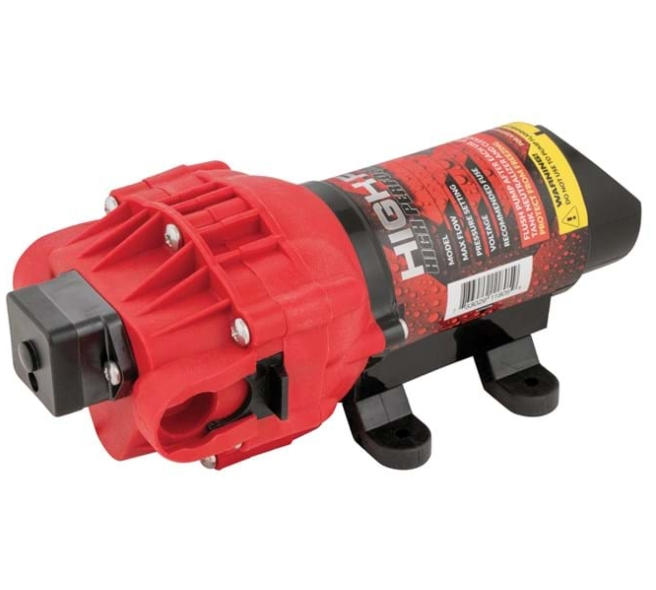

2.4 GPM High Flo High Performance Pump features an internally fan cooled motor as well as chemically resistant valves and diaphragms which increase durability ensuring longer pump life
Durable 20 Gallon blow molded tank features UV stabilizers and molded drain port and 5 inch lid for easy filling
Features FIMCOs exclusive quick release mounting system allowing you to quickly remove, change or store your spraying boom
Lever grip handgun features an aluminum lance and a adjustable polymer nozzle that delivers 30 feet of horizontal spray and 16 feet of vertical spray. Plus 15 feet of hose gives you the length necessary to reach tight areas, around buildings and other obstacles
Rigid steel 2 nozzle boom features Teejet® tips delivers 7 feet of total spray coverage with air induction tips for less wind drift and no drip check valves



Manufacturers Warranty1 yr Consumer / 90 day Commercial
Tank Size (Gal)20
Flow (GPM)2.4
Pressure (PSI)60
Spray Gun TypeLever Handgun
Spray PatternAdjustable Pattern Tip
Pump TypeHIGH FLO
Spray Height (ft.)16
Horizontal Spray Distance (ft.)30
Power Supply12V
Hose (in. x ft.)3/8 x 15
Boom Spray Coverage (ft.)7
Assembled L x W x H (in.)37.5 x 16.25 x 14
Pump Warranty2 yr Consumer / 90 day Commercial
