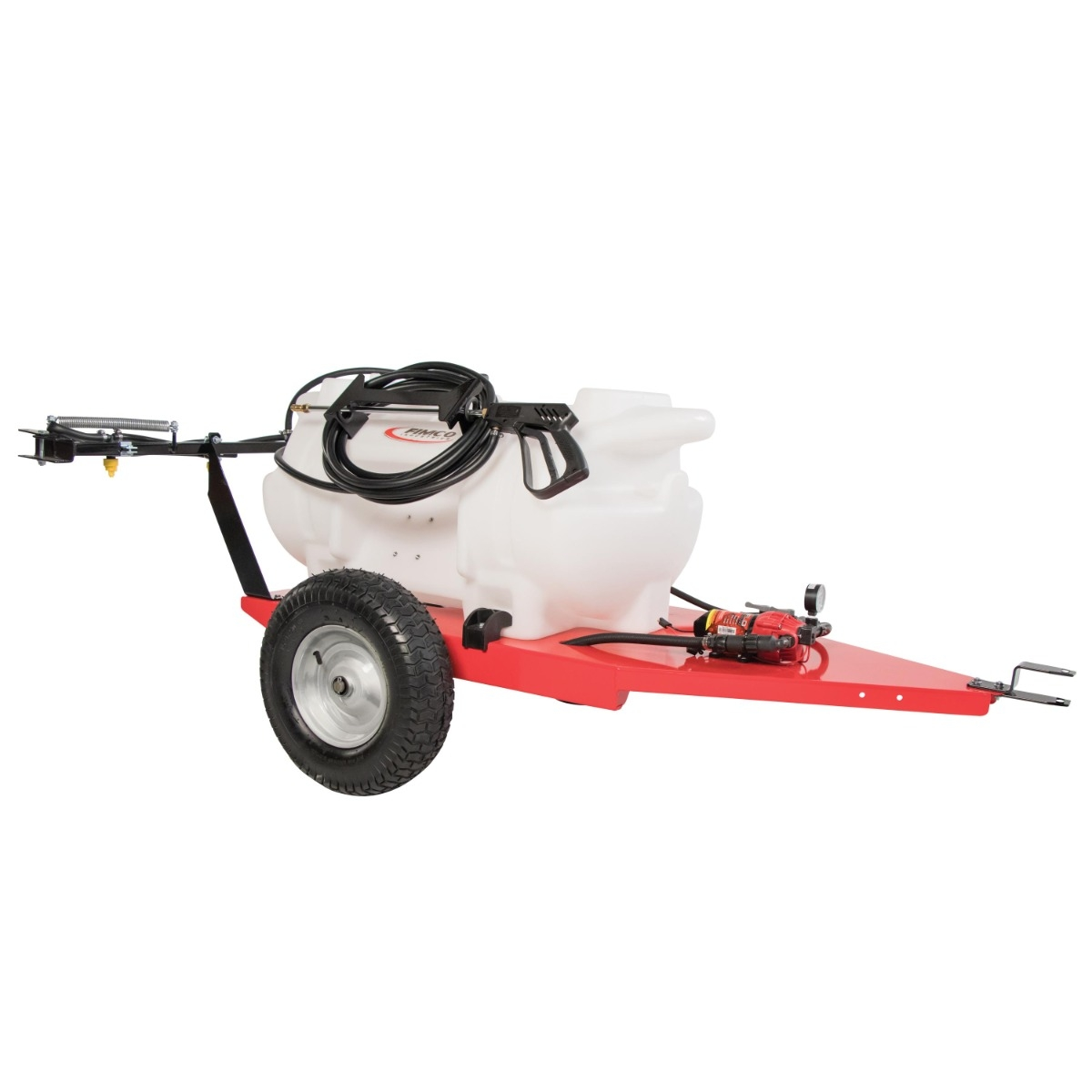

Fimco 40 Gallon Trailer Sprayer 12V 5 Nozzle

Features

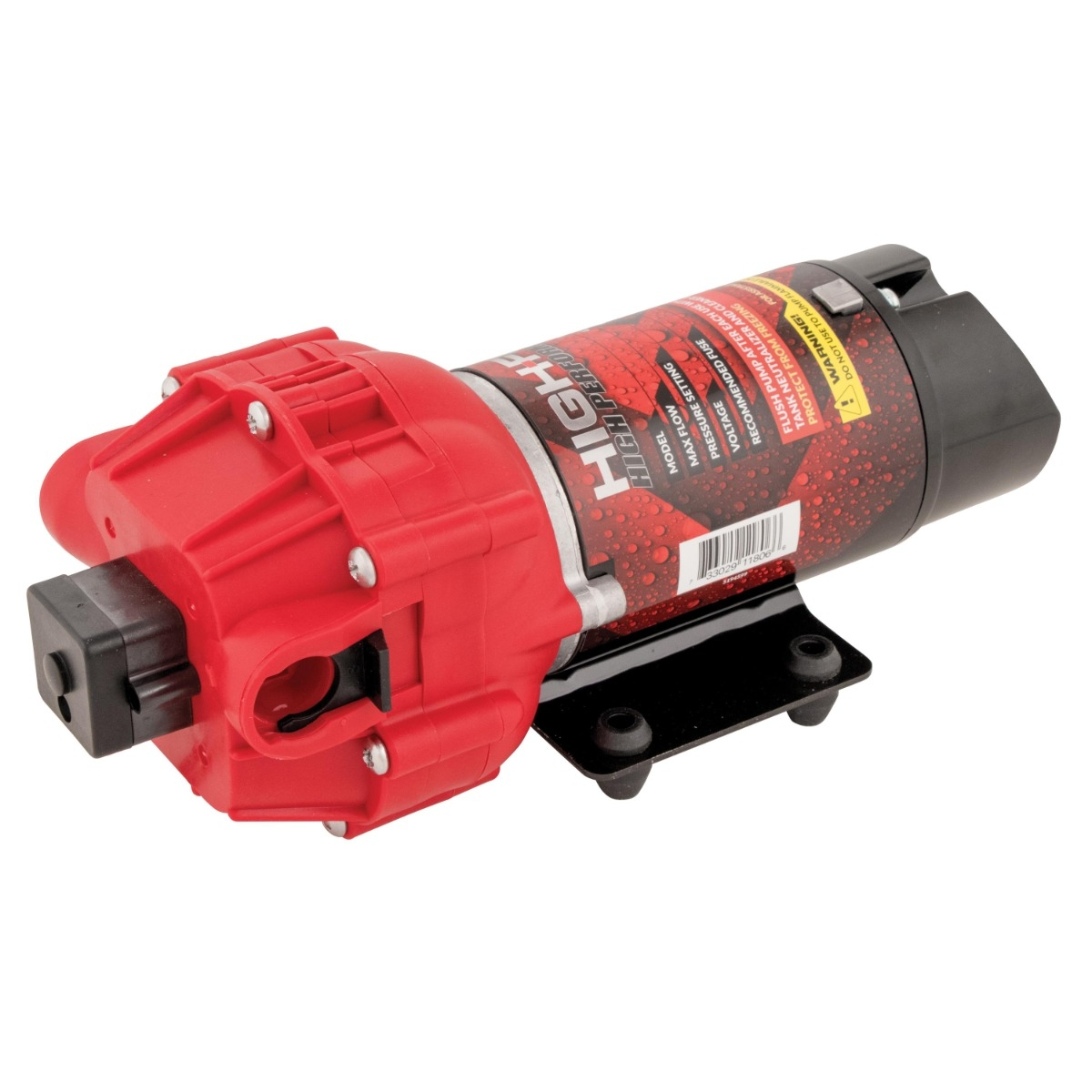

•   2.4 GPM High Flo High Performance pump features an internally fan cooled motor as well as chemically resistant valves and diaphragms which increase durability ensuring longer pump life

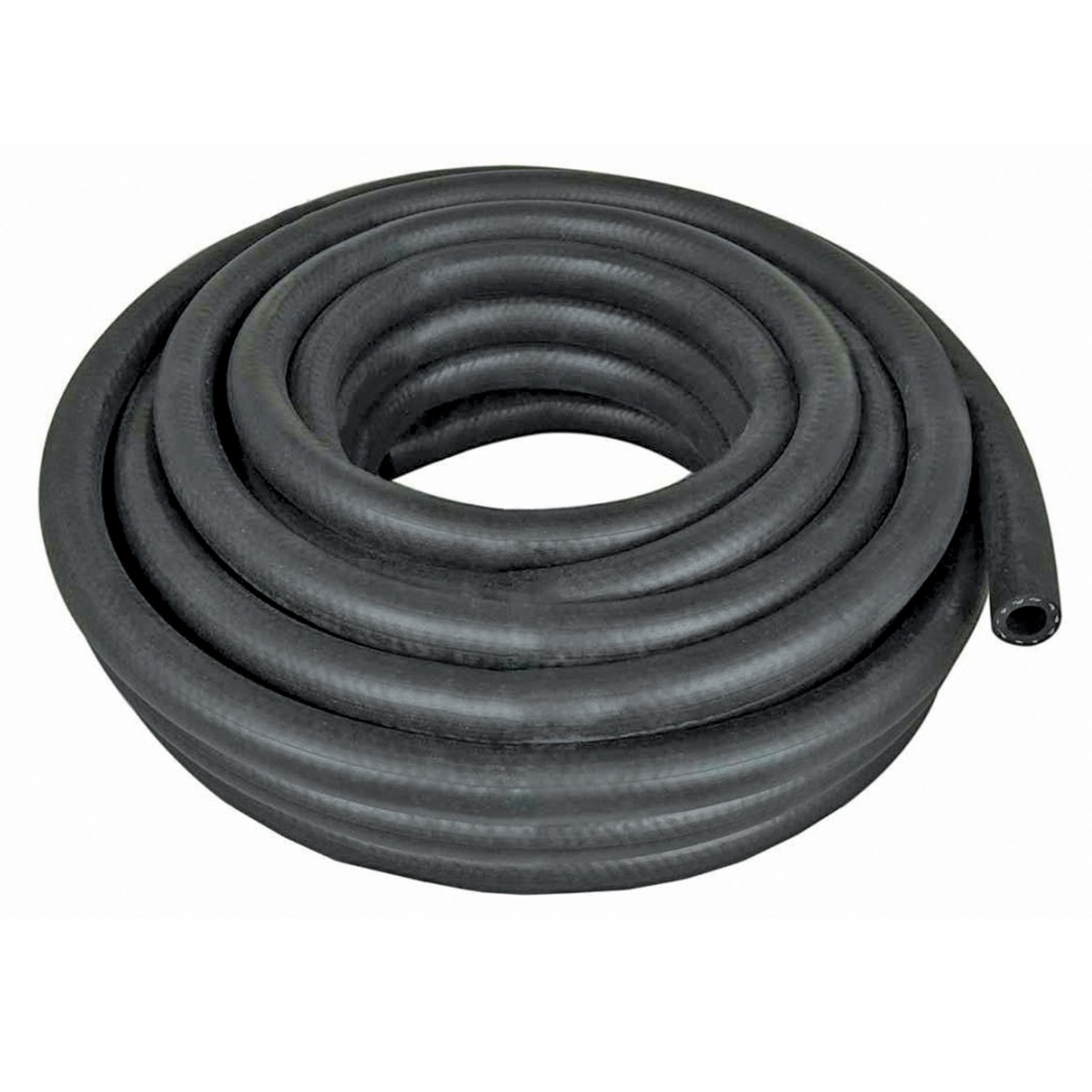

•   Deluxe pistol grip handgun delivers up to 40 feet of horizontal spray and 25 feet of vertical spray and features an ergonomic polymer handle and precision brass tip. 25 Feet of hose gives you the length necessary to reach tight areas, around buildings and other obstacles

•   Durable 40 Gallon blow molded tank features UV stabilizers, molded drain port and 5 inch lid for easy filling

•   Folding 5 nozzle welded steel boom is spring loaded for easy deployment, use and storage

•   Item ships standard freight via truck due to size and weight

•   Laser cut and welded steel frame is powder coated to resist corrosion and feature 16 x 6.50 – 8 pneumatic tires and 3/4 inch spindle

 SPECIFICATIONS

Manufacturers Warranty: 1 yr Consumer / 90 day Commercial

Tank Size (Gal): 40

Flow (GPM): 2.4

Pressure (PSI): 60

Spray Gun Type: Deluxe Pistol Grip Handgun

Spray Pattern: Adjustable Pattern Tip

Pump Type: HIGH FLO

Spray Height (ft.): 25

Horizontal Spray Distance (ft.): 40

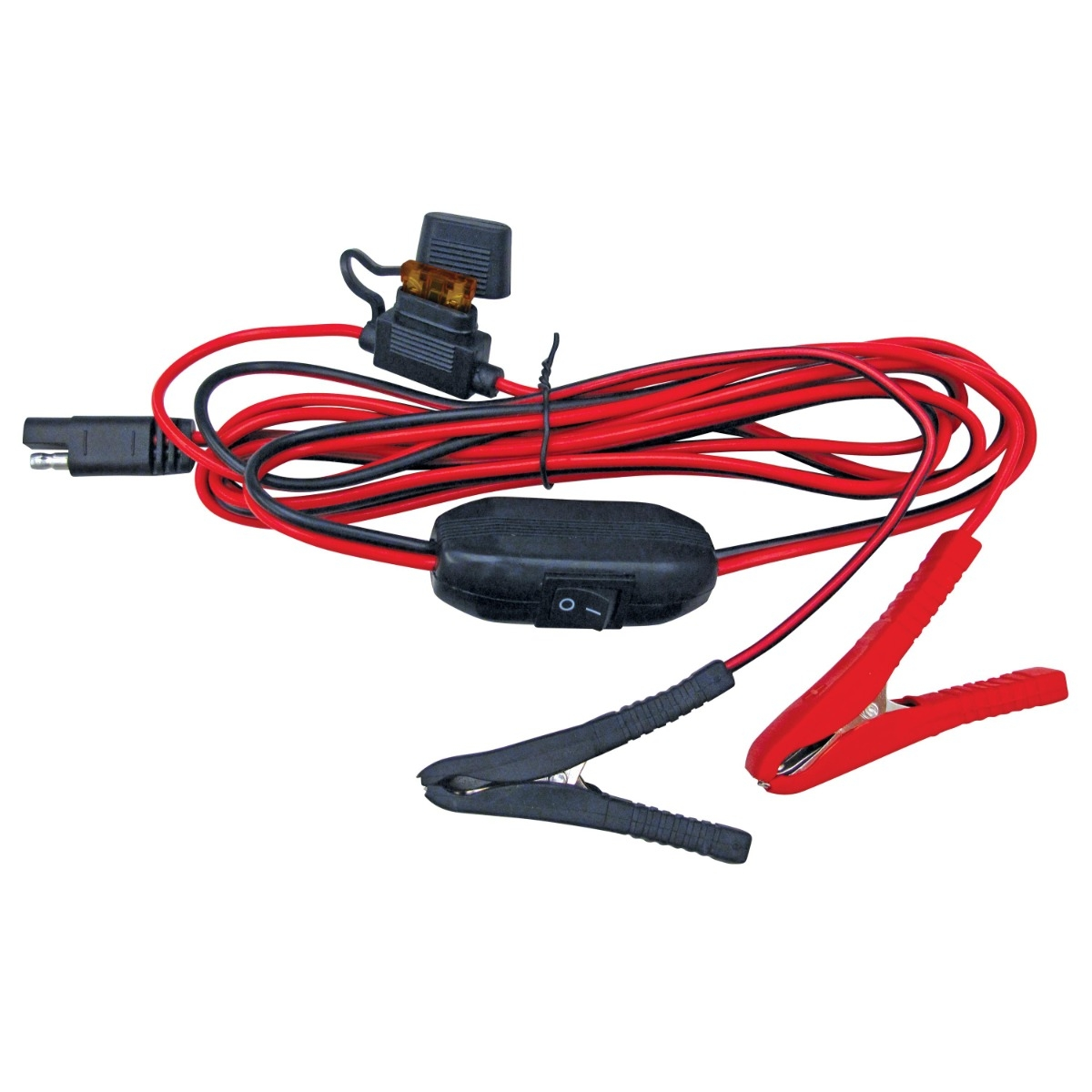

Power Supply: 12V

Hose (in. x ft.): 3/8 x 25

Boom Spray Coverage (ft.): 8

Tire Size: 16 x 6.50 – 8

Assembled L x W x H (in.): 71.5 x 38.25 x 32

Pump Warranty Through Manufacturer: 2 yr Consumer / 90 day Commercial



 PRODUCT MANUAL

https://www.fimcoindustries.com/userdocs/documents/tr-40-ex_-5301338-_08-20.pdf
